SHIVSU WATEC / WATER TREATMENT

Pretreatment Filtration System

Reliable Water Filtration Solutions for Better Treatment Performance

01Sand filters
02Activated carbon filters
03Multimedia filters
04Micron and iron removal filters
01 / THE FOUNDATION

What Is a Pretreatment Filtration System?

As a First step to clean water is to correct the filtration process, Whereas the raw water contains suspended particles and sediments as well as chlorine, organic impurities, excessive amounts of iron and other many substances which negatively affect water quality and the operation of your downstream treatment units.

At Shivsu Watec, we provide pretreatment filtration systems to remove these impurities before water moves to the next stage of treatment. Our range includes sand filters, activated carbon filters, multimedia filters, micron filters and iron removal filters, each used to address specific water quality problems.

Whether the water is being prepared for a reverse osmosis plant, or an industrial process, a commercial facility or another water treatment application, Shivsu Watec helps you choose a suitable filtration system based on the incoming water quality and treatment requirements.

A pretreatment filtration system removes certain impurities from raw water before it enters the next stage of treatment. So depending on the water source and its quality, this process may involve removing suspended solids, reducing chlorine, controlling odour, removing excess iron or filtering out fine particles.

And using the right combination of filters helps to protect downstream equipment, reduce maintenance needs and maintain consistent treatment performance.

Since the quality of raw water varies from one source to another, and also by the type of filter required depends on the impurities present, the water flow rate and the quality needed for the final application.

02 / FILTER TECHNOLOGIES

Our Pretreatment Filtration Solutions

01
1. Sand Filter – Effective Removal of Suspended Particles - Shivsu Watec water filtration system
SHIVSU WATECFILTRATION SYSTEM
FILTRATION SOLUTION / 01

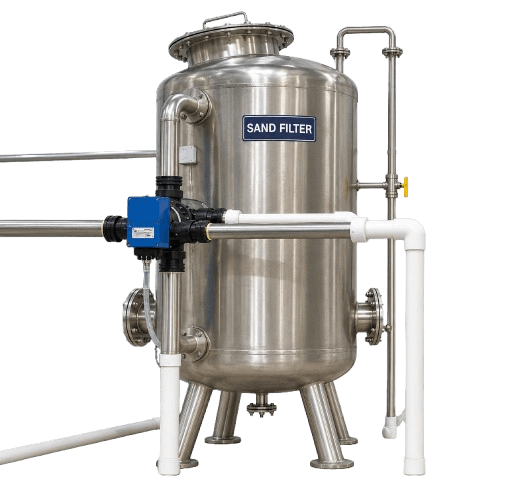

1. Sand Filter – Effective Removal of Suspended Particles

Raw water often contains sand, silt, rust and other suspended particles. If these impurities are not removed at the beginning, they can collect in pipelines, clog equipment and put extra load on the following treatment stages. In Shivsu Watec sand filters use a bed of graded filter media to trap suspended particles as water passes through the filter vessel. Over time, these particles build up in the filter, so that backwashing is carried out periodically to remove them and restore the filter's performance.

Where is it used?

  • Pretreatment for reverse osmosis systems
  • Industrial and commercial water treatment plants
  • General process water applications
  • Borewell and surface water filtration

A cleaner starting point for your water treatment process.

02
2. Activated Carbon Filter – Better Control of Chlorine and Odour - Shivsu Watec water filtration system
SHIVSU WATECFILTRATION SYSTEM
FILTRATION SOLUTION / 02

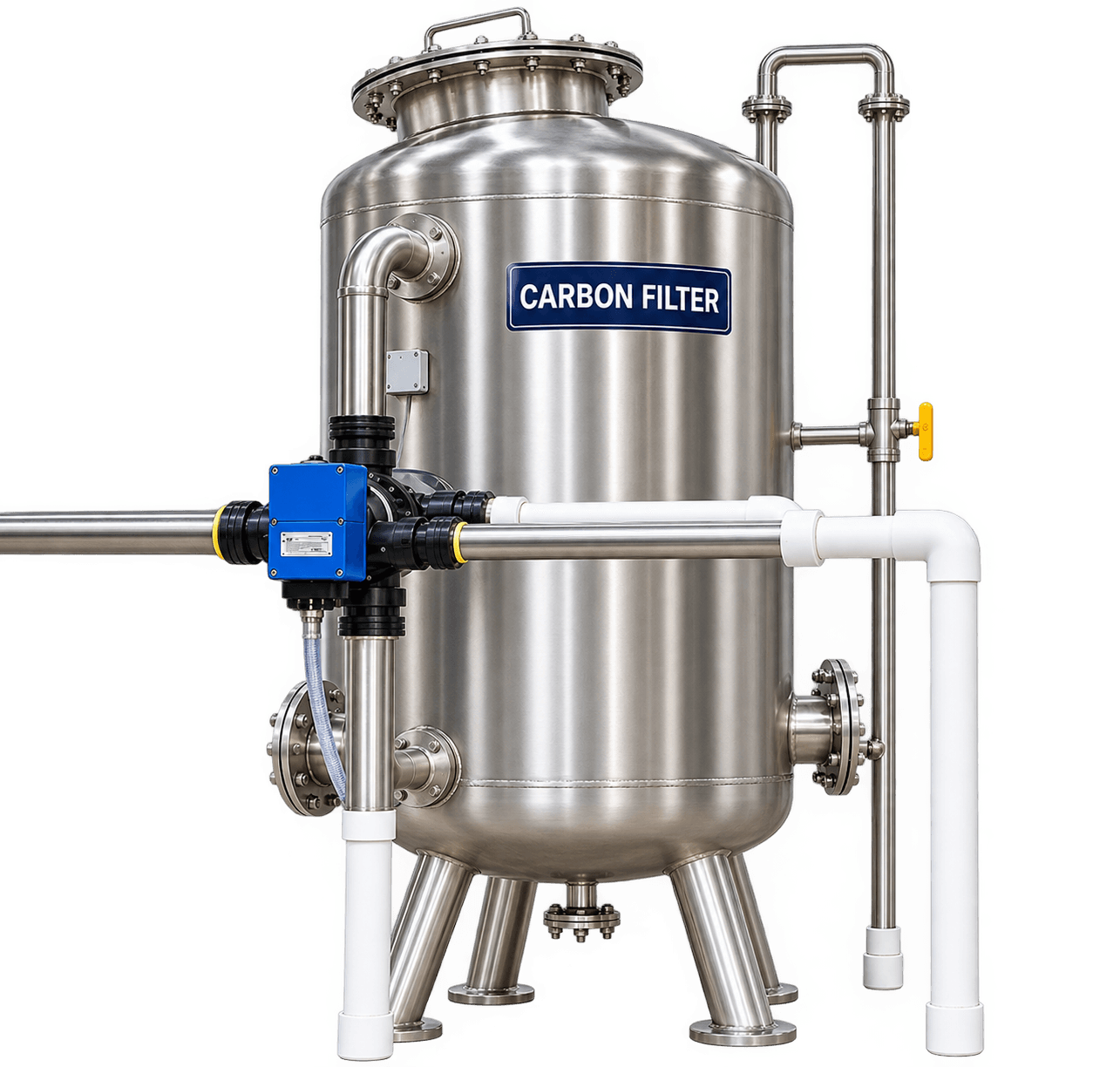

2. Activated Carbon Filter – Better Control of Chlorine and Odour

Chlorine, unpleasant odours and certain organic compounds can affect water quality and create problems in sensitive treatment processes. Activated carbon filters help reduce these unwanted substances before the water moves to the next stage.

Shivsu Watec activated carbon filters use porous carbon media to adsorb chlorine and select organic compounds from water. They are particularly useful before reverse osmosis plants and other treatment stages where chlorine needs to be reduced.

Where is it used?

  • Reverse osmosis pretreatment
  • Commercial and industrial water treatment
  • Process water preparation
  • Applications requiring chlorine and odour reduction

Help protect sensitive treatment stages with the right carbon filtration solution.

03
3. Multimedia Filter – Handling a Wider Range of Suspended Solids - Shivsu Watec water filtration system
SHIVSU WATECFILTRATION SYSTEM
FILTRATION SOLUTION / 03

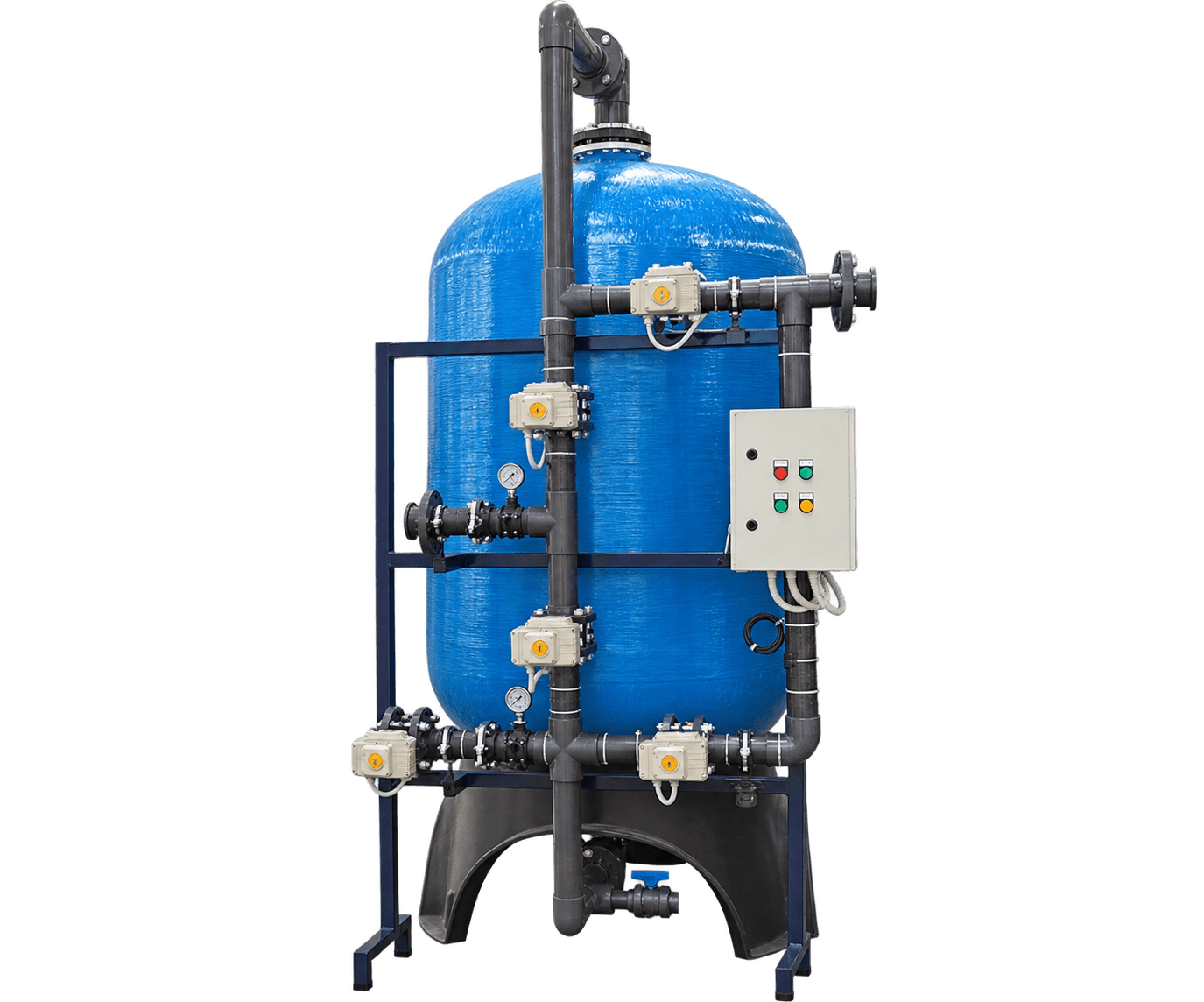

3. Multimedia Filter – Handling a Wider Range of Suspended Solids

The raw water may contain suspended particles of different sizes and in varying amounts. In such cases, a single type of filter media may not always be enough to achieve the required filtration.

In Shivsu Watec multimedia filters use different layers of filter media to trap suspended solids of various sizes as water passes through them.Depending on the media used and the system design, these filters can hold more suspended particles than a conventional single-media filter before cleaning is needed.

Like sand filters, multimedia filters also require periodic backwashing to remove the trapped impurities and maintain their performance.

Where is it used?

  • Industrial water treatment plants
  • Pretreatment for RO and UF systems
  • Commercial buildings and utility systems
  • Water containing varying amounts of suspended solids

Handle changing raw water conditions with a filtration system designed for your needs.

04
4. Micron Filter – An Extra Barrier Against Fine Particles - Shivsu Watec water filtration system
SHIVSU WATECFILTRATION SYSTEM
FILTRATION SOLUTION / 04

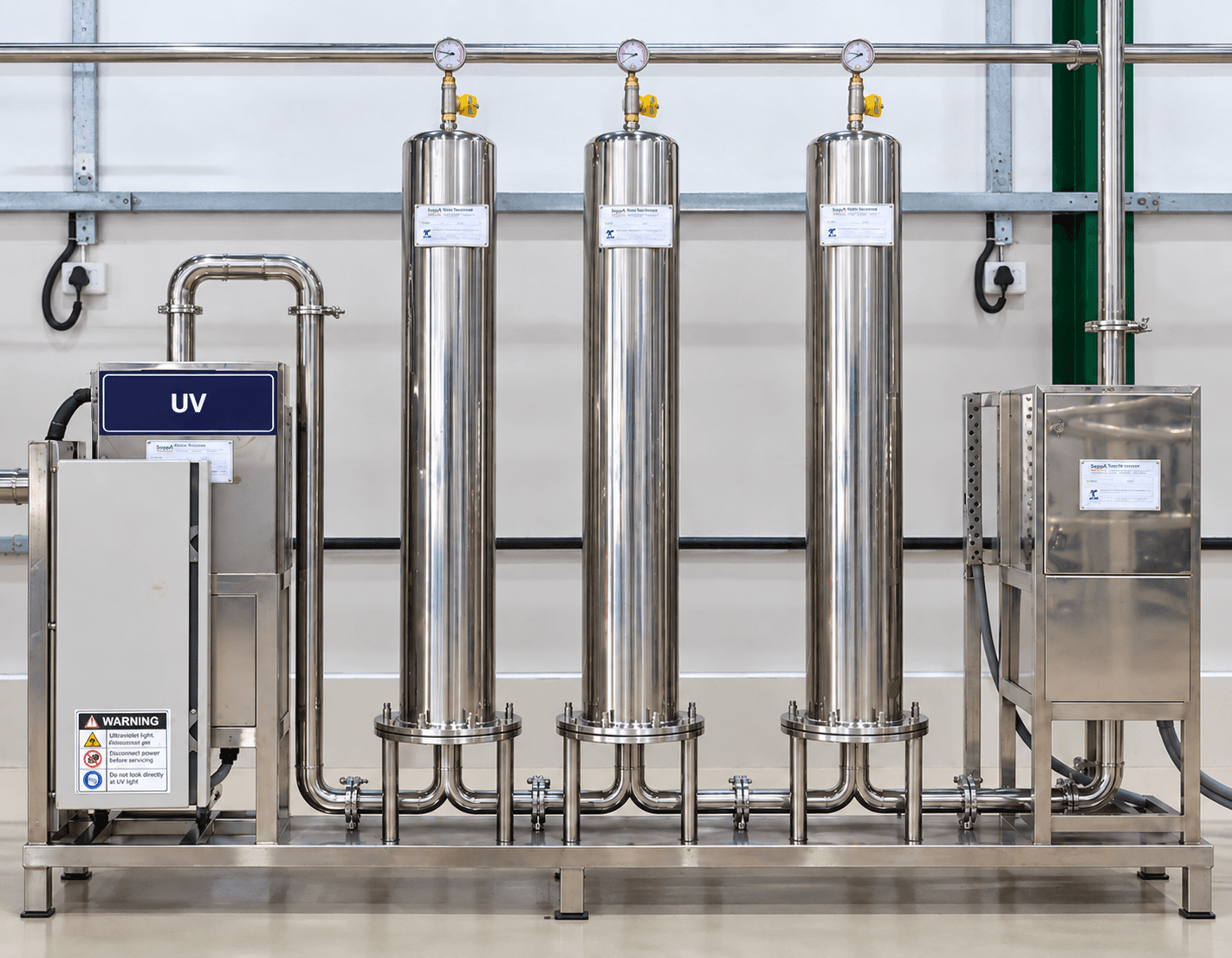

4. Micron Filter – An Extra Barrier Against Fine Particles

Even after the initial filtration process, some fine particles may still remain in the water. These particles can clog equipment, affect its performance and create problems for downstream membranes if they are not removed.

Shivsu Watec micron filtration systems use suitable cartridges or other fine-filtration elements to capture particles based on the selected micron rating. These filters are commonly installed before reverse osmosis membranes and other equipment where finer particle removal is required.

Where is it used?

  • RO plant pretreatment
  • Industrial process water systems
  • Fine filtration before sensitive equipment
  • Applications requiring controlled particle removal

Add an extra layer of protection where finer filtration matters.

05
5. Iron Removal Filter – Managing Excess Iron in Water - Shivsu Watec water filtration system
SHIVSU WATECFILTRATION SYSTEM
FILTRATION SOLUTION / 05

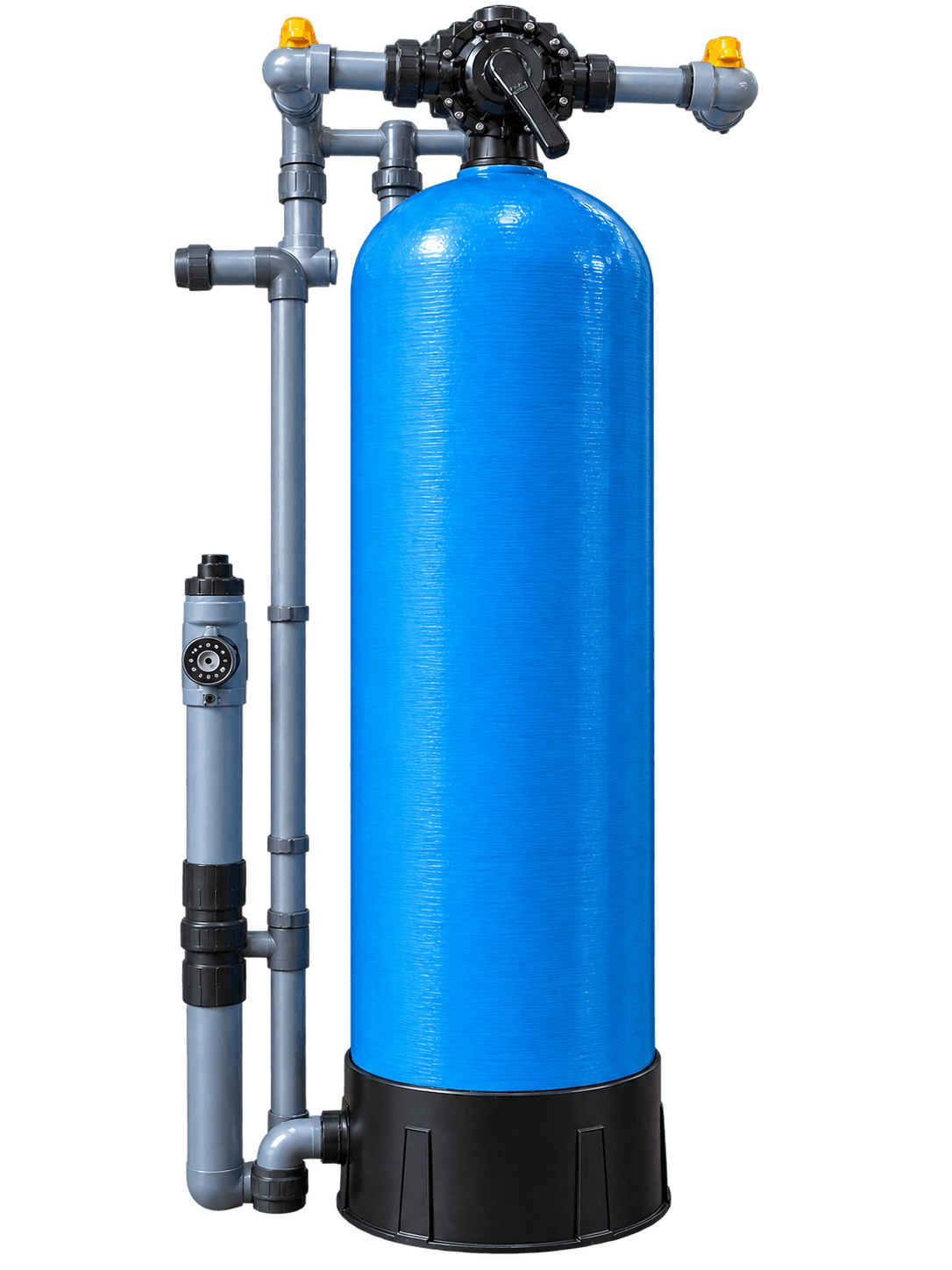

5. Iron Removal Filter – Managing Excess Iron in Water

The Groundwater with high iron content can leave reddish-brown stains on surfaces and cause discoloration, deposits and operating problems in pipelines and equipment. Where the method used to remove iron depends on how much iron is present and the form in which it occurs in the water.

In Shivsu Watec our iron removal filters are designed to reduce iron using suitable filter media and treatment arrangements. Depending on the water quality, oxidation or aeration may be needed before filtration. This helps convert dissolved iron into a form that can be trapped by the filter media.

Where is it used?

  • Borewell and groundwater treatment
  • Industrial water supply systems
  • Commercial water treatment installations
  • Applications affected by iron deposits or staining

Address iron-related water quality issues before they affect your operations.

03 / WHERE IT WORKS

Applications of Pretreatment Filtration Systems

Pretreatment filters are used in different industries and facilities, depending on the quality of the incoming water and how it will be used. Shivsu Watec filtration solutions can be used for:

RAW WATERPREPAREDFOR THE NEXT STAGE
01Manufacturing and process industries↗
02Pharmaceutical and chemical facilities↗
03Food and beverage production↗
04Hotels, hospitals and commercial buildings↗
05Boiler and cooling system pretreatment↗
06Reverse osmosis and ultrafiltration plants↗
07Groundwater and borewell water treatment↗

The type of filter required and the order in which the filters are installed depend on the raw water quality and the requirements of the application.

05 / FAQ

Frequently Asked Questions (FAQs)

Answers to common questions about pretreatment filtration systems and filter selection.

WATERFILTRATIONKNOW THE PROCESS

The actual difference is in the sand filter uses sand or another suitable filter medium to remove suspended particles from water. A multimedia filter uses different layers of filter media to catch particles of different sizes, helping remove a wider range of suspended impurities.

04 / YOUR FILTRATION REQUIREMENTS

Find the Right Filtration Solution with Shivsu Watec

Choosing the right filter starts with understanding the quality of your raw water and the impurities that need to be removed. Not every application requires the same type of filtration, so the system should be selected based on the actual treatment requirements.

Shivsu Watec helps you identify suitable pretreatment filtration options based on water analysis, operating capacity and the requirements of the next treatment stage. Whether you need a sand filter, activated carbon filter, multimedia filter, micron filter or iron removal filter, the aim is to provide a filtration arrangement that suits your application.
