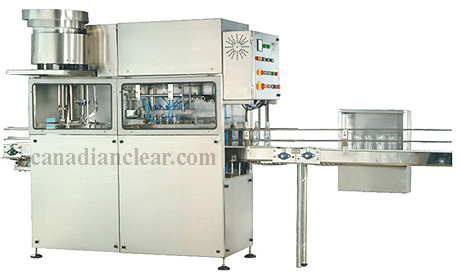

Compact Linear Bottling machine for Carbonated and Non-Carbonated
Mineral Water and Liquids
Fully Automatic & Semi
Automatic :
Shivsu Canadian Clear is one of the member of the Shivsu Canadian Clear
Group of Companies. Shivsu Canadian Clear has incorporated the
state of art technology in design engineering of filling

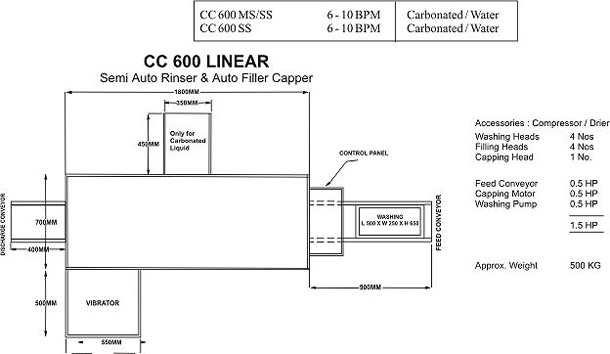

machines being manufactured. CC 600 fully automatic filling
and capping machine and semi automatic rinsing is specially
designed by Shivsu Canadian Clear for mineral water bottles and
carbonated beverages. The entire process has provisions
in the filling machines for rinsing, filling, capping
and sealing. The entire process is controlled by a PLC
with sensor Controls with one touch instrumentation systems.
The whole equipment is sleek and is capable of bottling
various sizes of bottles ranging from 200 ml to 2 ltrs.
The mineral water pet
bottles / carbonated mineral water bottles are fed into
the Input Feed Conveyor of the CC600 after manually rinsing
them in the semi automatic rinser.
The bottles go automatically on the conveyor to the filling
station. Optic Sensor senses the bottles and allows only
required amount of bottles to enter the filling station.
Special pneumatic robo's hold the bottles by the neck
and body prior to the filling heads descending into the
bottles. The filling is very accurate and is done by the
neck and body prior to the filling heads descending into
the bottles. The filling is very accurate and is done
by specially designed CC316 ? 3 way filling machines.
Filling system is incorporated alternatively for counter
pressure as well as volumetric filling. The filled bottles
then go to a cap pickup system where they pick up caps
before being capped in the capping station. A special
vibratory cap feeder provides proper orientation to the
caps. The capped bottles are then send out to the discharge
conveyor.
Optional Features :
|
|
| |
