Auto Loader
Fully automatic bottle loading system
to load water bottles from infeed conveyor to bottle holder.
Advanced robot pneumatic system combined with optical
sensor makes the loading process reliable and efficient.
|
|
| |
|
Scrubber
Specially designed Nylo-Brussel Scrubber are provided
in combination with angular sprays to wash the outer surface
of the bottle. The scrubber is so designed even to clean
the external neck area. |
|
| |
|
Automatic Filling Valves
Stainless steel
sanitary high accuracy filling valve are used to achieve
even filling in all mineral
water bottles. Specially designed high pressure and
low pressure filling cycle is provided with PLC control.
|
|
| |
|
The Machine incorporates four types of washing
• Filter water wash • Detergent
hot water wash
• Hot water • Ozonised water
Stage of washing is available from 3 to 11 depending upon
customers requirements. Wash water recycle tank as well
as 5/5 dust bin are provided in the washing segment.
Specially designed Nozzles with angular 0° to 15°
ensure efficient internal wash of the bottles. |
|
| |
|

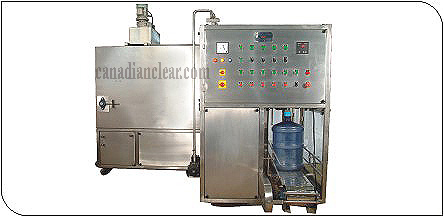

Control Panel
State of art PLC is used with LCD display screen to control
the machine. This system control important functions like
Wash Time, Fill Time and Conveyer ON/OFF Time and also
provide detailed fault detection features.
|
|
| |
|
|
Clean Room System
Built in clean room features with HEPA sub micron filter
can be provided on request. |
|
| |
|
Filling Heads
Stainless steel descending filling head are provided
to ensure highest sanitary filling without air bobble
formation and water spillage. |
|
| |
|
Capping System
Angular Counter conveyer ensure proper stamping of the
cap on to the Bottle Neck. The caps are fed to the bottleneck
by bottle sorter and efficient chute system. |
|
| |
|
| |
|
2
- 4 - 6 PLC

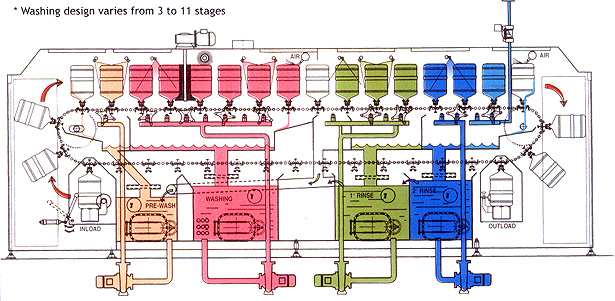

Washing Cycle
 |

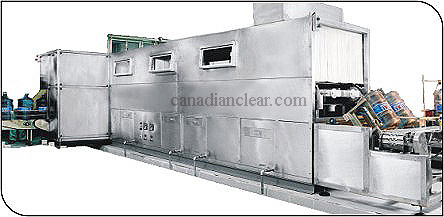

System Profile :
Shivsu Canadian Clear incorporates State of art technology
in design engineering of the system being manufactured.
The Shivsu Canadian Clear 1000 PLC series consisting of 2
BPM to 24 BPM range has been specially designed and
manufactured for 10 to 25 liters polycarbonate / Pet
Bottles. The mineral water bottles are fed into an
automatic robot arm which tilts the bottle on top
of high pressure spray which washes the bottle in
3 to 11 stages (Washing stages vary depending on quality
request). The Shivsu Canadian Clear 1000 PLC series is designed
to wash, scrub, fill and cap the bulk bottles. |
|
Technical Specification
:
| |
|
Model
|
Capacity |
| |
|
|
CC 1000-2PLC : 2 |
2 Bottles per minute
(PC/Pet-5 Gallon / 6 Gallon Bottles) |
| CC 1000-2PLC
: 4 |
4 Bottles per minute (PC/Pet-5
Gallon / 6 Gallon Bottles) |
| CC 1000-2PLC
: 6 |
6 Bottles per minute (PC/Pet-5
Gallon / 6 Gallon Bottles) |
| CC 1000-2PLC
: 10 |
10 Bottles per minute (PC/Pet-5
Gallon / 6 Gallon Bottles) |
| CC 1000-2PLC
: 12 |
12 Bottles per minute (PC/Pet-5
Gallon / 6 Gallon Bottles) |
| CC 1000-2PLC
: 16 |
16 Bottles per minute (PC/Pet-5
Gallon / 6 Gallon Bottles) |
| CC 1000-2PLC
: 24 |
24 Bottles per minute (PC/Pet-5
Gallon / 6 Gallon Bottles) |
| |
|
|
|
