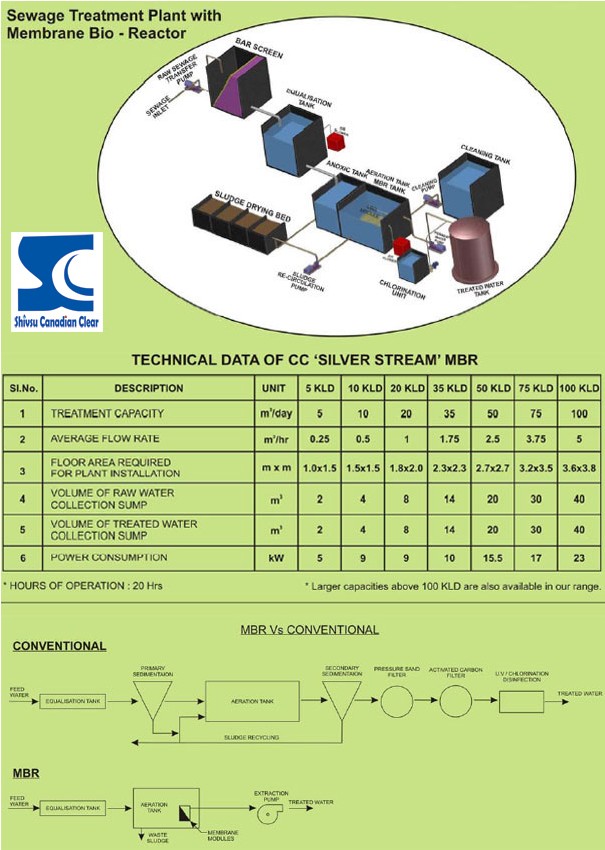

SEWAGE WATER TREATMENT : : MBR
- The Membrane Bio-Reactor
unit (hereinafter referred to as "MBR") can
treat domestic wastewater.
- Shivsu Canadian Clear “Silver Stream”
MBR is "Low maintenance cost" "Space saving"
"low initial cost" advanced water treatment system,
by combining active sludge treatment and submerged Membrane
Bio-reactor Systems.
- Shivsu Canadian Clear “Silver Stream”
MBR adopting membrane filtration process requires less space
and yet provides higher treatment performance compared with
the conventional treatment systems. That is why the MBR is
ideal for places with limited space, and for recycling of
treated water for drip irrigation, landscaping, toilet flushing,
road compacting, curing of concrete, etc.
- Raw sewage treatment capacity: from 10 KLD
to 100,000 KLD OR 10 m3/day to 100,000 m3/day are available
in the range of Shivsu Canadian Clear “Silver Stream”
Systems.
- Shivsu Canadian Clear “Silver Stream”
MBR sets 2 or 3 membrane modules in a vertical formation,
containing multiple membrane modules. Pumping wastewater through
the membranes effectively treats the water. Sludge clogging
on membrane surface is greatly reduced as air is constantly
scored from beneath the membrane module.
- Shivsu Canadian Clear “Silver Stream”
MBR, when catered to large sewage treatment for cities and
municipalities saves space, thus reducing the cost of the
project drastically, as worldwide the real estate value is
escalating to unprecedented levels.
The retention time for the treatment is considerably reduced
compared to Activated Sludge Process. Thus the Shivsu Canadian Clear
“Silver Stream” MBR is a compact design.
- Movable unit
Shivsu Canadian Clear “Silver Stream” MBR up to 100 KLD
capacity can be transported because of its compact size, hence
it can be transported to other sites after project termination
and can be reused.
- Easy installation
Since Shivsu Canadian Clear “Silver Stream” MBR is a
prefabricated plant, only joints, piping and wiring works
are required at site. Therefore, installation work is easy
and installation period is short.
- Less sludge volume
Volume of generated sludge will be reduced to one fourth (1/4)
compared with Activated Sludge Process. MBR is operated in
conditions of high concentration of MLSS, thereby producing
less sludge.
