Automatic PET Blowing
Machine
|

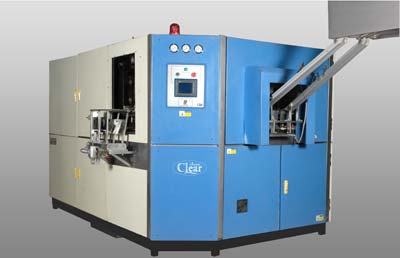

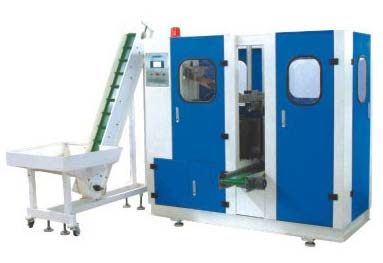

Automatic Stretch
PET Blowing Machine
|
|
All the qualities
of PET :
The PET bottle is a great success in many
countries. And no wonder, producted by the biaxially
oriented blow moulding process, PET or Polyethylene
Terephtalate ? bottles combine outstanding performance
and aesthetic qualities. These give you the superb
crystal clarity needed to show any product to advantage.
They have excellent carbonation retention properties
and good barrier to oxygen. Extremely resistant
to breakage, light to handle and transport and safe
to health and environment.
 With
Shivsu Canadian Clear system flexibility:
To the advantage of PET itself, the extraordinary

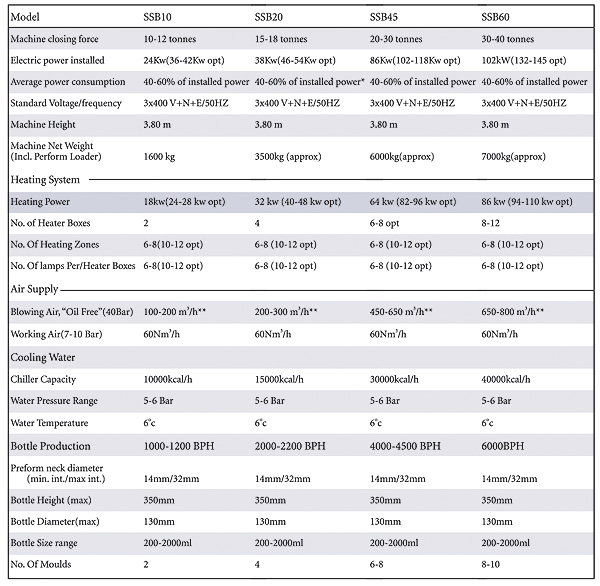

characteristics of the SSB 10 to SSB60 are added:
simplicity, compactness, reliability and flexibility.
Quickly installed, the machine is ready for producing
bottles of various shapes and contents as the changes
of the moulds are rapid. Renowned for these advantages,
it is the small ?two step? machine which is the
most sold in the world and gives satisfaction to
hundreds of producers for very different applications:
mineral water, carbonated
drinks, edible oil, detergents?
This is the ideal system for the economical production,
in small series, of quality bottles.
|
|
The Quartz Oven :
Eight vertically, horizontally and angularly adjustable
double lamps can be returned to all a more uniform
heating of any type of preforms before blowing. Preheating
is achieved by recirculating hot air exhausted by
lamps and the system automatically adjusts to changes
in the ambient temperature.
An oven with ten lamps (optional) permits the heating
of thicker preforms. |
|
|
 |
The Control Cabinet :
The control cabinet is equipped with a programmable
microprocessor with Error Status indicator. Setting
and adjusting of the controls can be performed manually.
For special climates the cabinet can be air conditioned.
|
|
 |
Easy Access:
The pneumatic, hydraulic and electrical equipments,
as well as the cooling system, are easily accessible.
Minimum replacement time is required when one type
of bottle mould is changed for another one. No special
tools are needed.
|
|
The Bi-Axial Orientation:
PET is certainly the
ideal material, but to retain that title, it also
needs the full benefits of bi-axial orientation.
Bi-axial orientation requires two stage production.
The preform is first produced and then, within a precise
temperature range, it is simultaneously stretched
both axially, (thanks to stretching rods), and radially
by blowing. It is this process which gives the container
its strength.
These two phases can be carried out on one double
acting machine (one stage) or separately on two different
machines (two stages).
But the new generation of application is covering
a still more extensive range : detergents and cleaning
products., wine and other alcoholic ? drinks, fruit
juices, certain conserves, sauces, ketchup and mustard,
cosmetic and pharmaceutical products, industrial paints
and oils, chemical products etc.,
A range of new markets with a promising potential.
Specialized in the manufacture of bi-oriented stretch
blow moulding machines for PET containers (starting
from preforms), Shivsu Canadian Clear is offering today a
completely upgraded range of small and medium capacity
blow moulding units.
They combine the proven simplicity and reliability
of the linear machine concept with the most recent
developments in the field of PET process technology.
A state of the art, user friendly operator machine
interface (graphic display) allows easy programming
of all relevant production parameters, ensuring at
the same time extremely fast product change-over.
Special equipment packages are available for the production
of refillable or hot fit PET bottles, PEN/PET bottles
and bi-oriented PP-bottles.
|
|
Advantages of a flexible system :
|
A system of
small modular units has many advantages over one large
machine. |
|
|
|
You can
begin small with the minimum investment. |
|
|
|
As business
grows, additional units can be acquired. |
|
|
|
Production
volume can easily and economically be adjusted to
market fluctuations. |
|
|
|
Bottles
of different sizes and weights can be produced simultaneously
on different units. |
|
|
|
Change over
from one production to another can be rapidly effected.
|
|
|
|
The equipment
design is simple and, as a result, the tooling costs
are low. |
|
|
|
The Shivsu Canadian Clear system is well known for its solidity and reliability
according to world standards. |
|
|
|
A simple
system to operate means short training for operators.
|
|
|
|
As
the machine requires very little maintenance, cost
related to non operating machines are negligible.
|
|
 |
| |
| |
|
