Water Treatment

Filteration Equipments

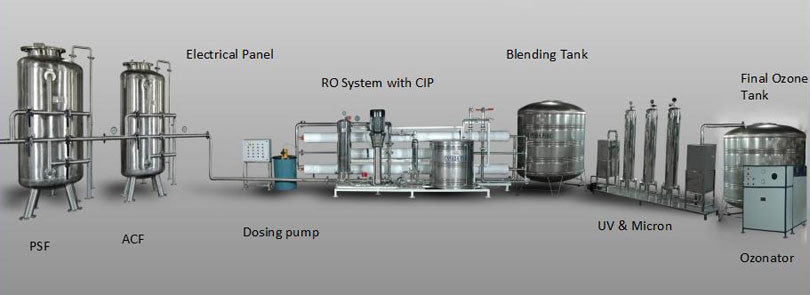

State of Art Water Conditioning Equipment for process industry :

Shivsu Canadian Clear is specialized in mineral water and bottled water projects and the equipments are tailor made. In addition to the above Shivsu Canadian Clear product range meet the industries expanding requirement for treated water of varying purity level for a wide range of applications. Shivsu Canadian Clear Water treatment systems are available from standard package type to custom built installations for high purity water.

Water Treatment



CLARIFIER

“Shivsu Canadian Clear” can design, manufacture and supply clarifiers as per customer requirement. Clarifier is a unit, which is provided to reduce the escape of suspended solids and bio-mass with the sewage. It consist of circular/rectangular tank with a clarifier arm to scrape down the settled sludge through the sloped hopper to the sludge pit from where it is taken to the sludge treatment units.


LAMELLA CLARIFIER/TUBE SETTLER:

“Shivsu Canadian Clear” can design, manufacture and supply Lamella Clarifiers/Tube Settlers as per customer requirement. Lamella Clarifier/Tube Settler is a physical unit, which is provided to remove suspended solids from the wastewater. The flocs which is form in the flocculator is allowed to settle down the by means of gravity settling. It consists of rectangular tubes / plates, which is placed at an inclination with respect to horizontal. When the wastewater is allowed to pass through the tubes/plates, water tends to move-up while the solids naturally move down because of gravity. The settled solid is collected in the sludge pit at bottom of the tank and it is taken to the sludge treatment units.

We offer prefabricated units in MS-FRP and in Civil based systems.

DAF SYSTEM (Dissolved Air Floatation)

“Shivsu Canadian Clear” can design, manufacture and supply DAF System as per customer requirement. Dissolved air floatation system is a physical unit, which is provided to achieve nil TSS. FeCl3 (ferric chloride) along with Alum and Poly electrolyte is dozed to support flocculation and sedimentation of total suspended solids. DAF equipment is particularly successful in Paper Mills, Tanneries and in other industries.

We offer prefabricated units in MS-FRP and in Civil based systems.

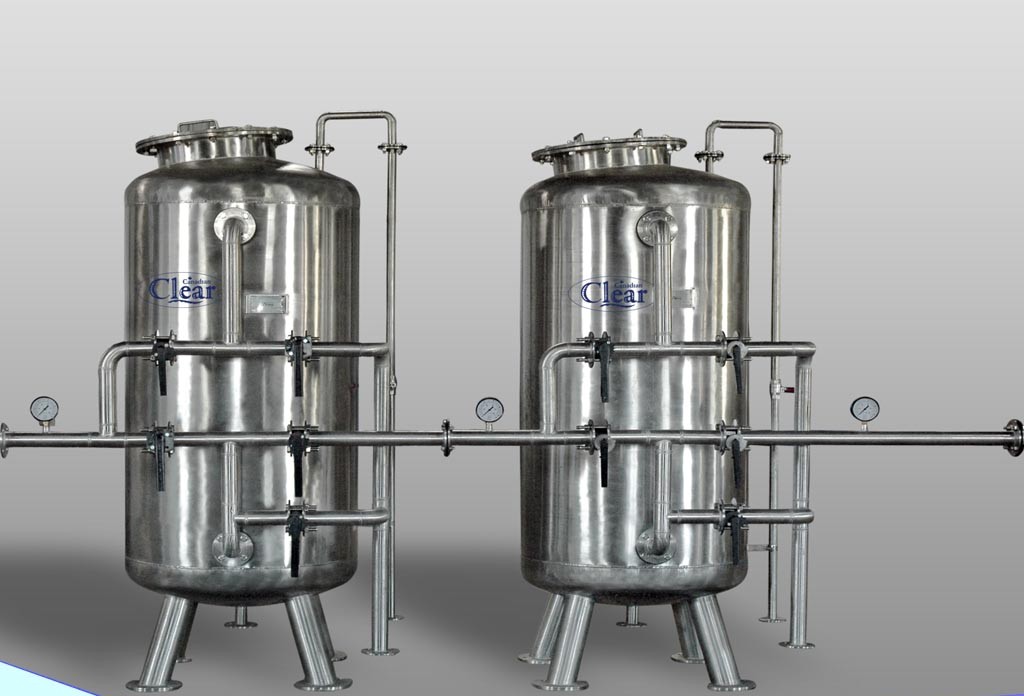

PRESSURE SAND FILTERS :

Shivsu Canadian Clear silver stream filters provide crystal clear water of turbiditly level of less than 2 to 3 mg/ltr on Silica scale. Horizontal and vertical filters are available in a complete range and sizes upto 3600mm dia Normal filtering medium employed is clean, sieved and grade quartz and fine sand. For applications like iron removal, chlorine reduction special type filter media are available.

A wide range of chemical dozing equipment is specially designed by Shivsu Canadian Clear for specific water quality requirements. For mineral water industry special TSS and Absorption Filters designed to meet the specific water quality level.

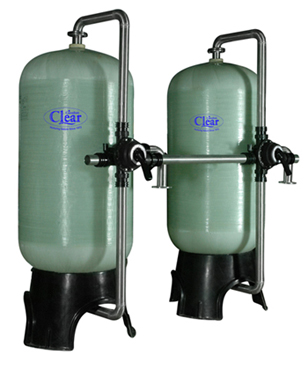

Pressure sand filter

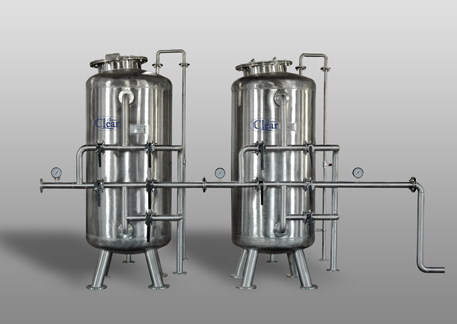

PRESSURE SAND FILTER



ACTIVATED CARBON FILTER (ADSORPOTION FILTER)

100 MICRON filtered water passed through the ACF to eliminate & oxidizes chlorine odor and color.

STRUCTURAL DESIGN: Manufactured with FRP/SS outer casing to provide structure strength and longevity of 20-30 years. Internally lined with acid resistance fiber re-enforced plastic (FRP) / Epoxy. All valves used in the system of International Standard. Carbon with iodine value of 800 is used. Special carbon with iodine value of 1200 is used for elimination of pesticides

CHEMICAL DOSING SYSTEM

This is a Electro-Mechanical Unit provided with Pump Chemical Tank and used extensively for dosing various chemicals at required rate into the raw water / sewage water for treatment.

ANTI SCALENT DOSING SYSTEM:
Anti Scalent is dosed in recommended quantities on line by a automatic doser to prevent scale formation on the RO membrane and eliminate chemical fouling.

ANTRACITE CARBON FILTER

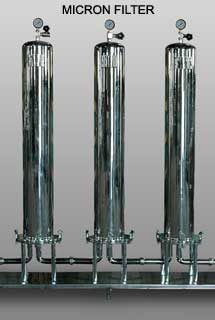

micron filterMICRON CARTRIDGE FILTERS

The Micron filter of 1.0, 0.45, & 0.2 are housed in a specially manufactured SS 316 housing. The code of the cartridges used is code 4-PP, PVDF, Pleated, Membrane cartridge. Specially Electro polished SS 316 housing with Derry Bends and SMS easily unlock fitting are used.

The micron cartridge used are PP, PVDF, Pleated Membrane, cartridges. They are far superior to any pleated, PP, cartridges.

The rating of the cartridges are absolute and guarantee to give the rating of filter prescribed.

MICRO FILTERS

IRON REMOVAL FILTER:

Bore well water passes through the IRF filter from the Raw Water Storage Tank. The IRF Filter removes Iron.

Structural Design: Manufactured with FRP/SS outer casing to provide structure, strength and longevity of 20-30 years. Internally lined with acid resistance fiber re-enforced plastic (FRP) / Epoxy. All valves used in the system of International Standard. British Iron Removal Media (Mn O2) used to remove the Iron.
