Automatic Bottle Washer
Automatic Bottle Washer
SRM 130/140/150
1. High Output
2. Multi – soak tanks with continuous sprays
3. Complete removal of Labels and Foils
4. Efficient cleaning & Sterilization of Bottles
5. Eco-Friendly
6. CIP Systems
7. Low consumption of Steam and Water
Automatic Glass Bottling Plants in Joint Venture with
RITA BOTTLING
ShivsuRita’s SRM 130/140/150 Automatic Bottle Washing Machines are designed for high output and for cleaning very dirty bottles with labels and foils. It has 3 to 4 multisoak tanks for intensive soak of the bottles and spraying inside, outside with high pressure sprays. The movement of the main carrier chain is continuous, giving high spraying and soaking times. The in-feed of bottles is with automatic auto-loader and out-feed by CAM system.
The machine is suitable for bottles up to 1 liter size Steam and Water consumption is kept minimum by means of Energy regeneration and water recycling at every stage, resulting in a very energy and eco-friendly machine. Cleaning in Place (CIP) is incorporated infresh water zone for cleaning and disinfection. Automatic Caustic measuring and dosing device will be incorporated as optional.
Salient Features
1. Advanced loading/unloading system
2. Multiple Soak Tanks
3. Higher Treatment Times
4. Efficient Label and Foil Seperation System
5. Automatic Lye Measurement and Dosing (Optional)
6. Hydrogen Gas Extractors (Optional)
7. 100% condensate recovery system
8. Continues drive system with multiple drive chain
9. Moving Sprays System
10. Low steam consumption
11. Fully Automatic Electrical Panel and Operator Panel
with digital readouts
12. Variable speed control
13. Low maintenance, Easy Service

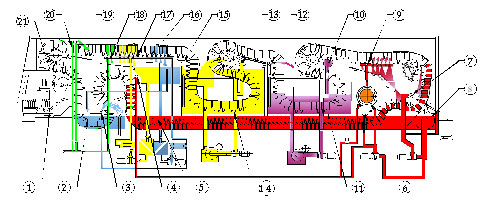

01. Bottle Feed Mechanism
02. Pre-Soak at 300C
03. Pre-Spray at 400C
04. Lye Flushing for Removal of dirts and labels
05. Main Caustic Soak at 650C
06. Lye Flushing for removal of dirts and labels
07. Lye Flushing for removal of dirts and labels
08. Label removal System
09. Caustic lye spary at 800C
10. Pre-filling and flushing of bottles with Lye
11. Caustic Lye soak at 650C
12. External flushing of bottles with Lye
13. Pre-Filling and flushing of bottles with Lye*
14. Caustic lye soak at 500C*
15. External flushing of bottles with Lye*
16. High pressure internal and external spray at 400C
17. High pressure internal and external spray at 300C
18. Fresh water internal spray
19. Fresh water external spray
20. CIP – Disinfection spray (optional)
21. Bottle discharge mechanism
*Not applicable for SRM 130

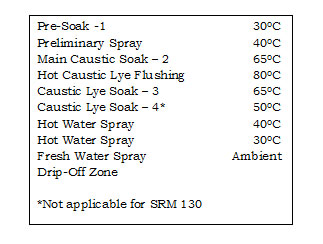

Treatment

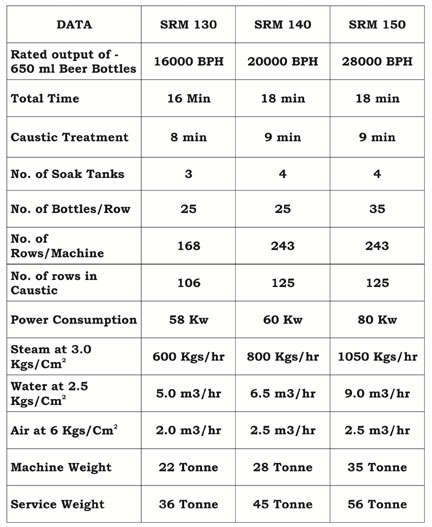

Technical Specifications
We also manufacture washers in smaller capacities for
Soft Drinks, Beer, IMFL and Fruit Juices in addition to
other bottling equipments such as Fillers, Pre-mix Carbonators,
Bottle Conveyors, Tunnel Pasteurizers and Packers
|
